Rexroth 4WE6D Shears Hydraulic Directional Control Valve: Installation and Commissioning Tips to Avoid Common Mistakes

12/7/20242 min read

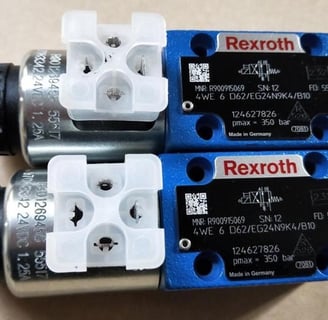

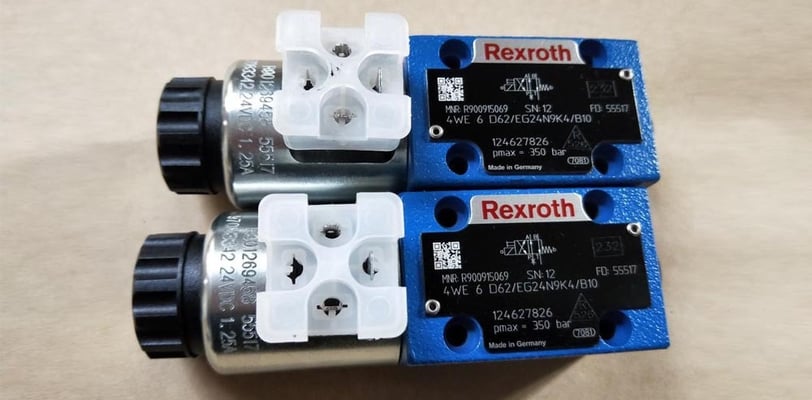

Introduction to Rexroth 4WE6D Shears Hydraulic Directional Control Valve

The Rexroth 4WE6D shears hydraulic directional control valve is a critical component in various hydraulic systems. Its primary function is to direct the flow of hydraulic fluid within the system, enabling precise control of machinery operations. However, the installation and commissioning of this valve require careful consideration to avoid common mistakes that could impact safety and efficiency.

Installation Best Practices

When installing the Rexroth 4WE6D valve, it is essential to follow specific guidelines to ensure optimal performance. First, make sure that the work area is clean and free from debris. Contaminants can enter the hydraulic system and damage the valve or other components.

Before installation, inspect the valve for any signs of damage. Verify that all parts are included as per the manufacturer’s specifications. It is vital to use the correct tools and follow the recommended torque settings to avoid over-tightening, which could cause leaks or mechanical failure.

Align the valve properly with the hydraulic lines and ensure that all connections are secure. It is advisable to use new seals when connecting the valve to prevent leaks, which can lead to pressure drops and inefficient operation.

Commissioning the Valve

Once the installation is complete, the commissioning process begins. This stage is critical as it involves testing the valve's functionality and ensuring it operates as expected. Start by filling the hydraulic system with the appropriate fluid, according to the manufacturer’s guidelines.

After filling, bleed the system to eliminate any trapped air, which can cause erratic behavior during operation. Activate the valve to check for smooth operation and ensure there are no unusual noises, which could indicate underlying issues.

During commissioning, monitor the pressure levels closely. Ensure that the pressure settings align with safety standards and operational guidelines. If any anomalies are detected, it is essential to stop the process and reassess the installation.

Common Mistakes to Avoid

There are several common mistakes that can occur during the installation and commissioning of the Rexroth 4WE6D valve. One common error is neglecting to follow the manufacturer's installation guidelines. Each hydraulic system is unique, and adhering to specific instructions is crucial for optimal performance.

Another mistake is failing to properly check for leaks after commissioning. Even a small leak can compromise the entire system’s integrity, leading to potential safety hazards. Regular maintenance checks are also overlooked, which can result in long-term damage.

Lastly, it is critical to avoid using incorrect hydraulic fluid types, as they can lead to valve failure and malfunction. Always refer to the manufacturer’s recommendations to ensure you use compatible fluids with the system.
