DG40 Excavator Double Acting Hydraulic Cylinder: Common Faults and Troubleshooting Methods

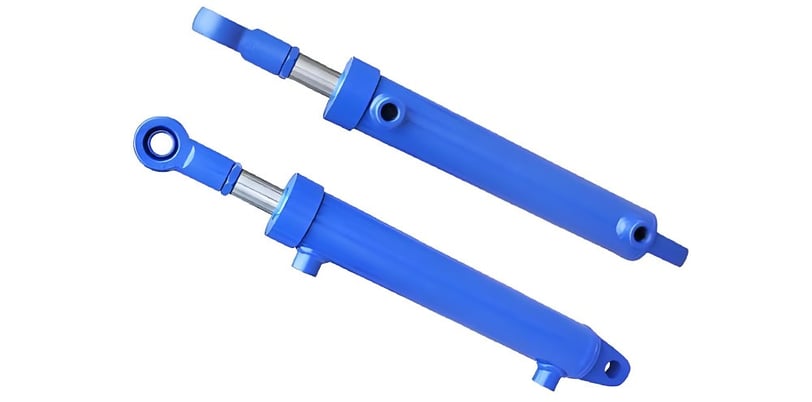

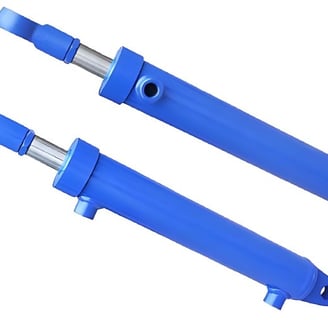

Understanding the DG40 Excavator Hydraulic Cylinder

The DG40 excavator is a powerful machine widely used in construction and landscaping. At its heart lies the double acting hydraulic cylinder, which efficiently converts hydraulic fluid pressure into linear motion. However, like any mechanical component, it is prone to faults that can affect its performance and longevity. In this post, we’ll explore common issues associated with the DG40 hydraulic cylinder and provide effective troubleshooting methods to extend its service life.

Common Faults in the DG40 Hydraulic Cylinder

One of the most prevalent faults in the DG40 excavator's hydraulic cylinder is fluid leakage. This can occur due to worn seals or gaskets, which may compromise the hydraulic pressure necessary for optimal performance. Another common issue is cylinder binding, where the piston fails to move smoothly, leading to mechanical stress and potential damage.

Additionally, overheating can be a significant problem. When hydraulic fluid exceeds its normal operating temperature, it can degrade the fluid's properties, negatively impacting the system's efficiency. Other mechanical issues such as pitting and corrosion can also affect the cylinder, primarily caused by contaminants in the hydraulic fluid.

Troubleshooting Methods for the DG40 Cylinder

Diagnosing issues with the DG40 hydraulic cylinder requires a systematic approach. First, inspect the cylinder for visible signs of leakage. If you note any fluid accumulating around the seals, it's time to replace them. Regular maintenance, including seal inspections, can often prevent more severe problems.

For cylinder binding, ensure that all moving parts are well-lubricated and free of debris. You may need to adjust the alignment of the cylinder to ensure it is properly seated within its mounting points. Additionally, check for any obstructions in the hydraulic lines that could impede fluid flow.

When addressing overheating issues, look at the hydraulic fluid level and condition. Regularly replacing old hydraulic fluid can prevent overheating caused by fluid degradation. It’s also advisable to inspect the hydraulic system's cooling components to ensure they are functioning properly.

Tips to Extend the Service Life of the DG40 Cylinder

To maximize the lifespan of the DG40 excavator's hydraulic cylinder, prioritize regular maintenance. Keeping the hydraulic fluid free from contaminants is crucial; consider installing filters in the hydraulic system to catch debris and particles.
Moreover, adhere to the manufacturer's recommendations for fluid changes and routine inspections. Proper usage of the excavator—avoiding overloading and following operational guidelines—can significantly reduce wear on the cylinder.

Finally, educate operators about the signs of potential issues and encourage them to report anomalies immediately. Early detection of problems can save time and costs related to repairs while ensuring efficient and safe operation of the excavator.
