Yuken CJT210 Loader Hydraulic Cylinder Installation Guide: Avoid Failure Caused by Incorrect Installation

Introduction to Yuken CJT210 Loader

The Yuken CJT210 loader is a robust piece of machinery known for its efficiency and reliability in various industrial applications. However, like any hydraulic system, proper installation of its components, especially the hydraulic cylinders, is vital. Incorrect installation can lead to malfunctions and costly repairs. This guide aims to provide a comprehensive overview of the installation process and highlight key considerations to avoid failure.

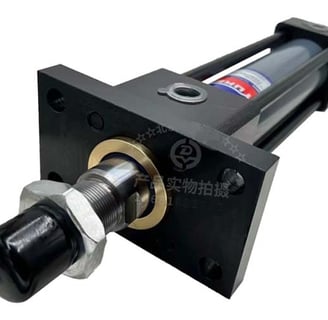

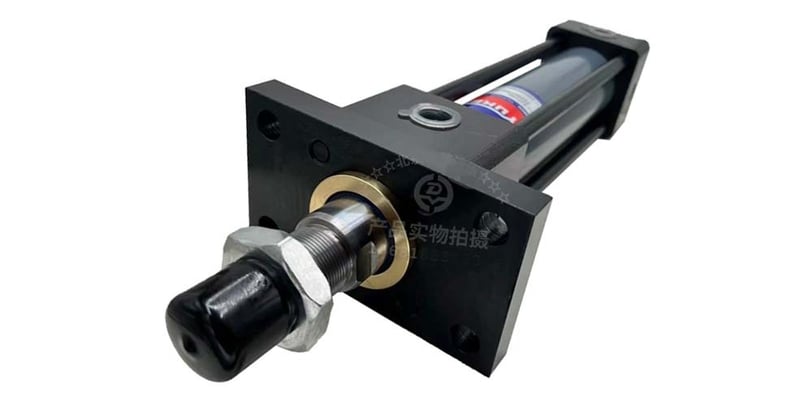

Understanding Hydraulic Cylinders

Hydraulic cylinders are critical components of the Yuken CJT210 loader. They convert hydraulic energy into mechanical force, enabling the loader to lift and move heavy materials effectively. When it comes to installation, it is important to follow the manufacturer's guidelines closely. The process involves several steps that ensure the hydraulic cylinders function correctly and seamlessly integrate with the loader's hydraulic system.

Step-by-Step Installation Guide

Before beginning the installation of the Yuken CJT210 loader's hydraulic cylinder, gather all necessary tools and parts. Here is a step-by-step guide to assist you:

1. Preparation: Make sure the loader is powered down and disconnected from any hydraulic power source. This ensures safety during installation.
2. Inspect Components: Check the hydraulic cylinder for any damage or defects. Ensure that all seals and fittings are intact, as damaged components can lead to leaks and inefficiency.
3. Mounting the Cylinder: Securely attach the hydraulic cylinder to the designated mounts on the loader. It is crucial that the cylinder is aligned properly to avoid uneven stress that might cause failure.
4. Connecting Hoses: Carefully connect the hydraulic hoses to the cylinder, ensuring they are tightened adequately. Avoid overtightening as this can also lead to damage.
5. Check for Leaks: Before reactivating the loader, inspect all connections for potential leaks. Any signs of hydraulic fluid escaping should be addressed immediately.
6. Testing: Once installation is complete, power up the loader and conduct a test run. Monitor the hydraulic cylinder’s operation to ensure everything functions smoothly.

By following this installation guide for the Yuken CJT210 loader hydraulic cylinder, operators can minimize the risk of failure caused by improper assembly. Regular maintenance checks should also be conducted to ensure the longevity and performance of hydraulic components.

Conclusion

In conclusion, the installation of hydraulic cylinders for the Yuken CJT210 loader is a process that requires careful attention to detail. By adhering to the steps outlined in this guide, operators can prevent installation errors that could lead to significant machinery failure. Remember, investing time in proper installation not only enhances performance but also extends the operational life of your loader.
