Yuken CJT140 Harvester Hydraulic Cylinder Installation Guide: Avoid Failure Caused by Incorrect Installation

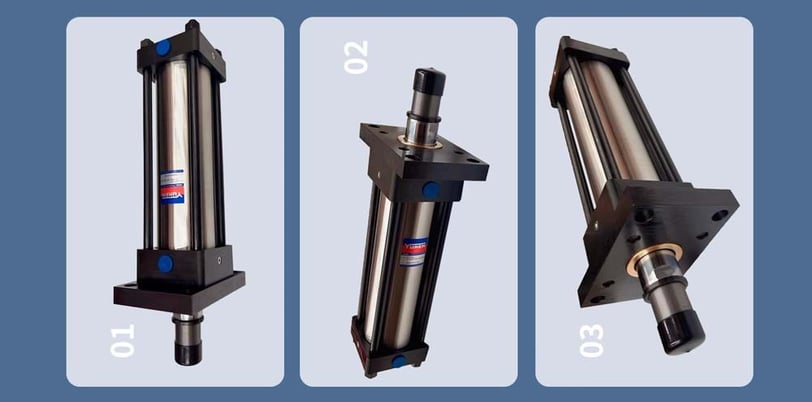

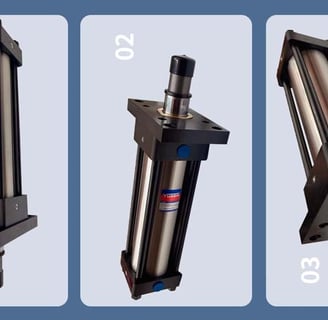

Introduction to Yuken CJT140 Hydraulic Cylinder

The Yuken CJT140 harvester hydraulic cylinder is a critical component designed to enhance the performance of your agricultural machinery. Its installation is paramount for ensuring operational efficiency and prolonging the lifespan of the equipment. Unfortunately, improper installation can lead to significant mechanical failure. This guide aims to provide comprehensive instructions to avoid common pitfalls associated with hydraulic cylinder installation.

Preparation Before Installation

Before diving into the installation process, it’s essential to prepare adequately. Begin by gathering all necessary tools, including wrenches, safety glasses, and suitable hoisting equipment. Next, it is important to review the manufacturer’s manual for specific instructions related to the Yuken CJT140. Pay special attention to the hydraulic fluid specifications, as using incorrect fluids can seriously affect performance.

Inspect the cylinder for any signs of damage or wear, which could compromise its function. Ensure that all surfaces where the hydraulic cylinder will be mounted are clean and free of debris. Proper preparation usually contributes to a more seamless installation process.

Step-by-Step Installation Process

Begin the installation by securing the equipment on a flat and stable surface. If necessary, use blocks to elevate the harvester to a comfortable working height. Carefully position the Yuken CJT140 hydraulic cylinder onto the mount using hoisting equipment to prevent injury and avoid damaging the cylinder.

Align the cylinder with the pre-drilled holes in the harvester. It’s crucial to achieve proper alignment, as misalignment can lead to undue stress on the hydraulic components. Once aligned, insert the mounting bolts and hand-tighten them initially. This will give you room to adjust the position of the cylinder if needed.

After the bolts are hand-tightened, use a torque wrench to tighten them to the specifications provided in the manual. Failing to adhere to these specifications could result in a failure during operation. Remember that uniform torque is essential to maintain proper functionality.

Post-Installation Checks

Once the Yuken CJT140 hydraulic cylinder is securely installed, conduct a thorough inspection to ensure everything is in place. Check all connections for leaks and examine the hydraulic hoses for any signs of wear or damage. Filling the hydraulic system with the appropriate fluid should be the next step, following the manufacturer's recommendations.

After filling, test the harvester by operating the hydraulic system while monitoring for any irregularities or leaks. Performing these checks can help identify potential issues early and prevent costly repairs in the future.

Conclusion

Installing the Yuken CJT140 harvester hydraulic cylinder requires careful attention to detail and adherence to the manufacturer’s guidelines. By following the steps outlined in this installation guide, you can avoid the failures commonly caused by incorrect installations. Remember, a properly installed hydraulic cylinder is essential for the longevity and efficiency of your harvester, ensuring that your agricultural tasks run smoothly without interruptions.
